PV1300 Series (1-1.5KVA)

High Frequency Off Grid Solar Inverter

PV1300 is a cost effective , intelligent hybrid off grid solar inverter with power range 1000VA 1500VA. The LCD display offers friendly user-configurable button adjustment such as input voltage setting, AC/solar charger priority , mute setting. When battery voltage is low, it’s will automatically switch to AC grid to supply continuous power to the loads. It suitable for personal home use.

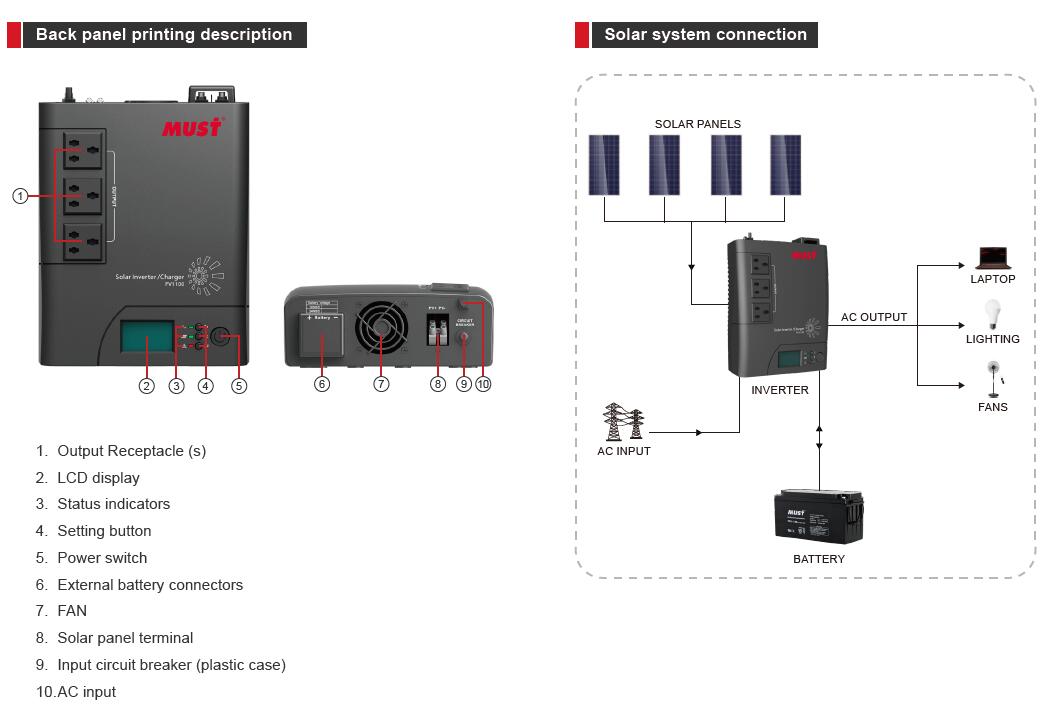

  • Description

Features:

• Simulated sine wave inverter

• Built-in 50A PWM Solar Charge Controller

• MFD (multi-function display)

• 20A standard charging current from utility

• AC/solar priority for output via MFD

• 3 steps charging algorithm

• Overload & short-circuit protection

• Battery reverse polarity protection

• Deep discharge protection

• Auto restart while AC/solar is recovering

Specification:

MODEL PV13-1012 PV13-1512 PV13-1024 PV13-1524
Nominal Battery System Voltage 12VDC 12VDC 24VDC 24VDC
NVERTER OUTPUT
Rated Power 1000VA/600W 1500VA/1000W 1000VA/600W 1500VA/1000W
Waveform Simulated Sine-wave
Nominal Output Voltage RMS 230V
Output Voltage Regulation +10/-18%
Output Frequency 50Hz/60Hz ±1 Hz
Inverter Efficiency(Peak) >80%
Line Mode Efficiency >98%
Typical Transfer Time Typical 6~8ms 10ms max
AC INPUT
Voltage 230VAC
Selectable Voltage Range Narrow 175~260VAC
Wide 140~270VAC
Frequency Range 40Hz-70Hz (Auto sensing)
BATTERY
Nominal Input Voltage 12VDC 24VDC
Minimum Start Voltage 10.5VDC 21.0VDC
Low Battery Alarm 10.5VDC 21VDC
Low Battery Cutoff 10.0VDC 20.0VDC
High Voltage Cutoff 15.5VDC (max) 31.0VDC (max)
SOLAR CHARGER & AC CHARGER
Maximum PV Charge Current 50A (max)
Maximum PV Array Power 450W/750W 900W/1500W
PWM Range @ Operating Voltage 16~55VDC
Maximum PV Array Open Circuit Voltage 55VDC
Maximum Efficiency >95%
Standby Power Consumption <2W
AC Charger Voltage 14.4V(max) 28.8V(max)
AC Charging Current 10A / 20A
BYPASS & PROTECTION
Nominal Input Frequency 40Hz – 70Hz
Overload Protection (SMPS Load) FUSE
Output Short Circuit Protection FUSE
Bypass Fuse Rating 10A
Max Bypass Current 10Amp
MECHANICAL SPECIFICATIONS
Machine Dimensions (W*H*D) 231*290*92mm
Package Dimensions (W*H*D) 595*375*315mm
Net Weight (kg) 2.8 4
Gross Weight (kg) 3.5 4.7
OTHER
Operation Temperature Range 0°C~50°C
Audible Noise 50dB MAX
Display LED+LCD
