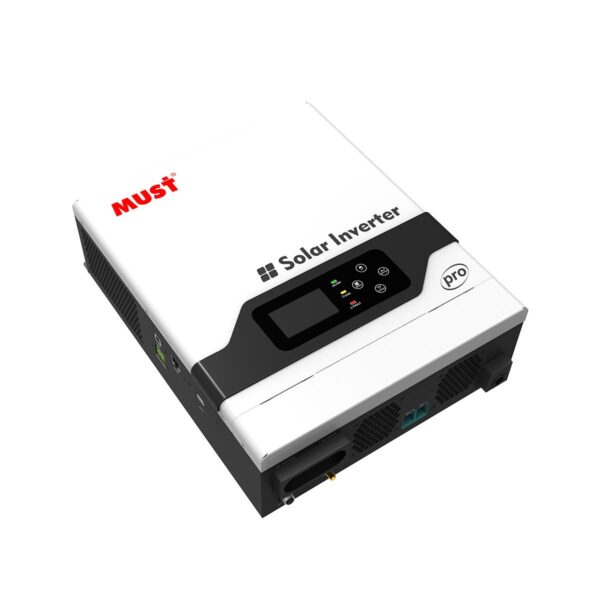

PV1800 PRO Series (PV:400V 2/3.2KW)

High Frequency Solar Inverter 2~3.2KW | PV 400V | DC 24V

PV1800 PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 400V and MPPT voltage is 60~320Vdc, which Can help customers make full use of solar energy.

  • Description

■ Pure sine wave output

■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).

■ Built-in MPPT solar charge controller

■ MAX PV Array Open Circuit Voltage: 400V

■ Combining solar system, AC utility, and battery power source to supply continuous power

■ Overload, short circuit and Deep discharge protection

■ Cold start function

■ Support USB, RS485 monitoring function

■ WIFI remote monitoring (Built in wifi module and antenna)

■ PV/ AC activation function

■ BMS communication function

MODEL PV18-2024 PRO PV18-3224 PRO
Nominal Battery System Voltage 24VDC
Rated Power 2000VA / 2000W 3200VA / 3200W
Surge Power 4000W 6400W
Waveform Pure sine wave
AC Voltage Regulation (Batt.Mode) 230VAC±5%(Setting)
Inverter Efficiency(Peak) 90%
Transfer Time 10ms (UPS / VDE4105) / 20ms (APL)
Voltage 230VAC±5%
Selectable Voltage Range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range 50Hz / 60Hz(Auto sensing)
Normal voltage 24VDC
Floating Charge Voltage 27.4VDC
Overcharge Protection 30VDC
Maximum PV Array Open Circuit Voltage 400VDC
Maximum PV input voltage 18A
Charging Algorithm 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power 3000W 4000W
PV Array MPPT Voltage Range 60~320 VDC
Maximum Solar Charge Current 80A 100A
Maximum AC Charge Current 40A 60A
Maximum Charge Current 80A 100A
Machine Dimension (W*H*D) 367*290*111mm
Humidity 5% to 95% Relative humidity (Non-condensing)
Operating Temperature 0°C~50°C
Storage Temperature -15℃ ~60℃
CE-EMC+LVD (EN6100-6-3:2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011)
