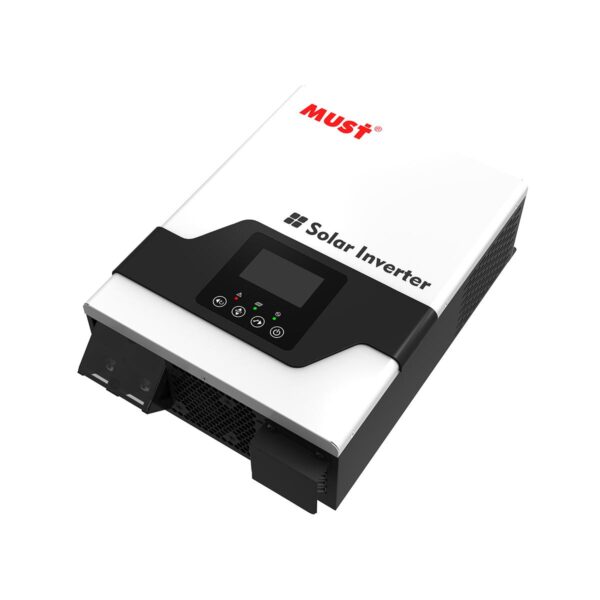

PV1500 Series (1-2KVA)

High Frequency Off Grid Solar Inverter 1~2KVA | MPPT 45A | AC 15A/20A | PV 105V

It is a cost effective, intelligent solar inverter which accepts Solar & Utility input at the same time. The comprehensive LCD display offers userconfigurable and easy-accessible button adjustment such as battery charging current, AC/solar charger priority and DC priority.When battery voltage is low,it will automatically switch to AC grid to supply continuous power to the loads.

  • Description

■ Built-in 45A MPPT Solar Charge Controller

■ 15A@24V, 20A@12V standard charging current from utility AC

■ AC/solar priority for charging via MFD

■ Different charging mode for different kinds of batteries

■ Overload & short-circuit protection, Battery reverse polarity protection, Deep discharge protection

■ Auto restart while AC/solar is recovering Adjustable solar and utility charging current

■ Support two kinds of batteries include LiFePO4 Lithium Battery Pack and Lead-acid Battery.

■ Support one key battery type fast setting

■ Automatic activate protected lithium battery pack by Utility AC.

■ Automatic activate protected lithium battery pack by Solar PV

■ Low shutdown loss for energy storage system application

MODEL PV15-1012 PV15-1512 PV15-2024
Nominal Battery System Voltage 12VDC 12VDC 24VDC
NVERTER OUTPUT
Rated Power 1000VA / 600W 1500VA/ 1000W 2000VA / 1200W
Waveform Pure Sine Wave
Nominal Output Voltage RMS 230V
Output Voltage Regulation +10/-18%
Output Frequency 50Hz / 60Hz ± 1Hz
Inverter Efficiency (Peak) >90%
Line Mode Efficiency >95%
Typical Transfer Time Typical < 10ms , 20ms max
AC INPUT
Voltage 230VAC
Voltage Range 170~280VAC (UPS) / 90~280VAC (APL) / 184~258VAC (VDE)
Frequency Range 50Hz/ 60Hz (auto sensing)
BATTERY
Note: Below Parameters (PB) Lead-acid Battery / (LI) LiFePO4 Lithium Battery Pack – 12V(4 Series) 24V(8 Series)
Nominal Input Voltage 12VDC 12VDC 24VDC
Low Battery Cutoff 10.5VDC(PB) 11.5VDC(LI) 10.5VDC(PB) 11.5VDC(LI) 21.0VDC(PB) 23.0VDC(LI)
Low Battery Alarm 11.0VDC(PB) 12.0VDC(LI) 11.0VDC(PB) 12.0VDC(LI) 22.0VDC(PB) 24.0VDC(LI)
Low Battery Voltage Recover 12.5VDC(PB) 12.8VDC(LI) 12.5VDC(PB) 12.8VDC(LI) 25.0VDC(PB) 25.6VDC(LI)
High Battery Voltage Recover 14.5VDC(PB) 14.5VDC(LI) 14.5VDC(PB) 14.5VDC(LI) 29.0VDC(PB) 29.0VDC(LI)
High Battery Voltage Cutoff 15.0VDC(PB) 15.0VDC(LI) 15.0VDC(PB) 15.0VDC(LI) 30.0VDC(PB) 30.0VDC(LI)
SOLAR CHARGER & AC CHARGER
Charger Voltage boost 14.4VDC(PB) 14.4VDC(LI) 14.4VDC(PB) 14.4VDC(LI) 28.8VDC(PB) 28.8VDC(LI)
Charger Voltage float 13.8VDC(PB) 14.4VDC(LI) 13.8VDC(PB) 14.4VDC(LI) 27.6VDC(PB) 28.8VDC(LI)
Maximum PV Charge Current 45A (max)
Maximum PV Array Power 600W 600W 1200W
MPPT Operating Voltage Range 14 ~ 75VDC 14 ~ 75VDC 28 ~ 75VDC
Maximum PV Array Open Voltage 105V
Maximum Efficiency > 95%
AC Charging Current 10A/20A (Can be set) 10A/20A (Can be set) 7A/15A (Can be set)
Maximum Charge Current AC+PV 10~65A (Can be set) 10~65A (Can be set) 10~60A (Can be set)
BYPASS & PROTECTION
Overload Protection (SMPS Load) FUSE
Output Short Circuit Protection FUSE
Bypass Fuse Rating 7A 10A 10A
Max Bypass Current 7A 10A 10A
MECHANICAL SPECIFICATIONS
Machine Dimension (W*H*D) 235*290*92mm 224*337*98mm 235*290*92mm
Package Dimension (W*H*D) 595*375*315mm 300*410*178mm 595*375*315mm
N.W (kg) 2.8kg 3.6kg 3.0kg
G.W (kg) 3.5kg 4.3kg 3.7kg
Material Plastic case Metal case Plastic case
OTHER
Operation Temperature Range 0℃ to 40℃
Audible Noise 50dB MAX
Display LED+LCD
CERTIFICATION & STANDARDS
CE
