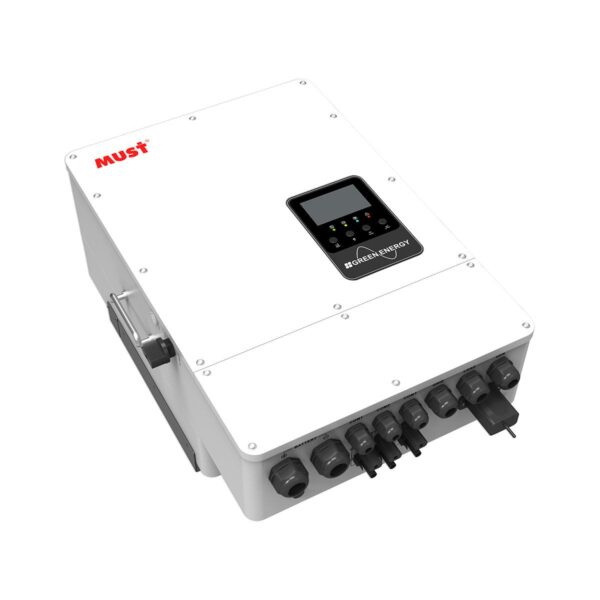

PH1100 US Series (Split Phase 5-8KW)

Split Phase Hybrid Solar Inverter | AC 240/120V | DC 48V | PV 550V

PH1100 US is brand new split phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and highpower density, this series supports 1.3 DC/AC ratio, saving device investment. It’s applicable to 110VAC/120VAC markets demands, which matches AC 110VAC/120V single phase, or two phase 220V/240V; Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

  • Description

■ 100% unbalanced output, each phase max. output up to 50% rated power

■ Max. 6 pcs parallel for on-grid and off-grid operation

■ AC couple to retrofifit existing solar system

■ Support multiple batteries parallel

■ Max. charging/discharging current of 180A

■ Support storing energy from diesel generator

■ 48V low voltage battery, transformer isolation design

■ IP65 water-proof and dust-proof

■ “Time of use” function: a maximum of 6 time segments can be set

■ Wifi monitoring

Rated power 5000W 6000W 7000W 8000W
Battery type Lead-acid battery / Lithium battery
Battery voltage 48V
Battery voltage range 40~60V
Charging curve 3-stage adaptive with maintenance/Equalization
Charging Strategy for Li-lon Battery Self-adaption to BMS
Over-current protection/ Over-temperature protection Yes / Yes
Maximum charging/discharging power 5000W 6000W 7000W 8000W
Maximum charging/discharging current 120A 130A 160A 180A
Max. DC Input Power 6500W 7800W 9100W 10400W
Rated PV Input Voltage 550V
Maximum DC voltage 550V
Start-up Voltage 160V
Minimum voltage for grid connection 210V
Full Load DC Voltage Range 350-550V
Enter high voltage error recovery point 600V
MPPT voltage range 200~550V
Maximum input current 15A/15A 26A/13A
No.of MPP Trackers 2
No.of Strings per MPP Tracker 1+1 2+1
Rated AC Input/ Output Power 5000W 6000W 7000W 8000W
Max AC Input/ Output Power 5500W 6600W 7700W 8800W
AC Input/ Output Rated Current 20.8/22.7 25/27.2 29.1/31.8 33.3/36.3
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Rated Input/Output Voltage 240Vac/ 120Vac
Rated Input/Output Grid Frequency/Range 50/60;45~55/55-65
Grid Type Split Phase
Total Harmonics Current Distortion (THDi) <3% (of nominal power)
DC Current Injection <0.5% In
Max. Efficiency ≥97.5%
Euro Efficiency 97.0%
Integrated PV Arc Fault Detection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
Surge Protection DC Type III/AC Type III
Overvoltage Category DC Type II/AC Type III
Operating Temperature Range (°C) -20°C to +60°C, >45°C Derating
Cooling Smart cooling
Noise (dB) ≤55dB
Communication with BMS Wi-Fi/USB/GPRS/RS485/CAN
Machine Dimension (W*H*D)(mm) 444*654.2*259.2
Package Dimension (W*H*D)(mm) 816*404*567
N.W(kg) 35
G.W(kg) 37
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 Years

the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy

CE-EMC+LVD (EN6100-6-3, EN6100-6-1+EN IEC 62109-1, EN IEC 62109-2); CE-LVD(EN 62477-1) ; IEC 60529; EN50549-1; Poland Type A, (NC RfG:2016, PSE:2018, PTPiREE:2021)C10/C11; UNE217001-2020; UNE217002-2020, NTS-631 (Type A); G98+G99
