LP2900 Series (51.2V-100Ah)

Lithium Iron Phosphate (LiFePO4) Battery 5.12-10.24kWh

This battery is designed and manufactured by MUST for energy storage applications. It has long service life, high safety, flexible installation, strong expansibility and strong communication ability. It can be used in conjunction with MUST or many other brands of on/off grid inverters and EMS, and can also be equipped with WIFI modules to achieve wireless transmission and communication between devices, forming a complete energy storage system. The design of the battery meets the requirements of UN38.3, CE, IEC62619 and other standards for energy storage battery.

  • Description

■ 19 inches rack standard

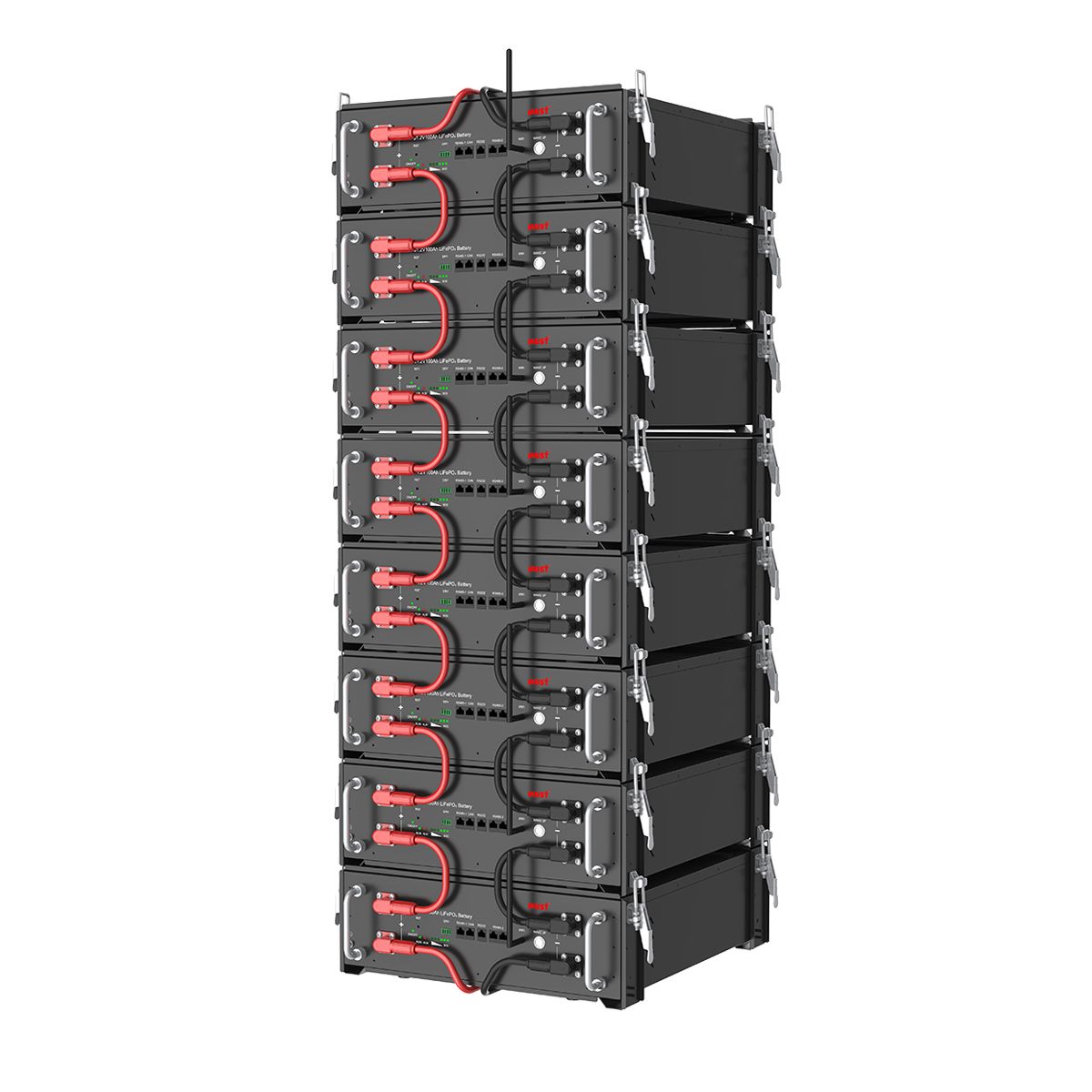

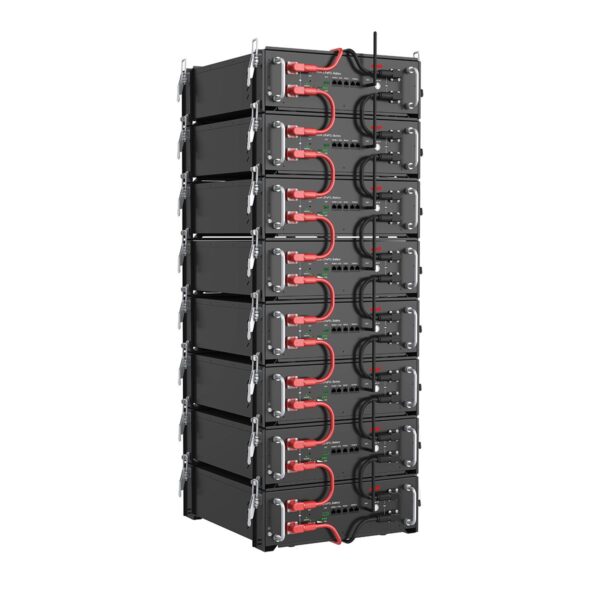

■ A simpler stacking bracket can be used to form a battery system (optional)

■ Built-in WiFi Smart BMS Module

■ 6000 cycles @ 80% DOD, 25°C

■ Large capacity, high power output

■ Safest lithium iron phosphate battery cell with high energy density

■ Supports up to 16 units in parallel

■ High integration, saving installation cost and simplifying the wiring

■ Built-in circuit breaker for over-current protection

■ Perfect compatibility: support CAN & RS485 communication with mainstream inverters

Technical Data LP29-48100
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Nominal energy 5120Wh
AC Internal Impedance ≤30.0mΩ
Standard Charging Constant current 50.0A
Constant voltage 56.8V
End current

(Cut off)

Standard Discharging Constant current 50A
Cut off voltage 43.2V
Charging Voltage Range 56.8~57.6V
Max. Continuous Charging Current 100.0A (1C)
Max Output Power 5KW
Parallel connection Up to 16 units
Communication Port RS485, CAN, WIFI(optional)
Power cable connectors ESS-120A-25-B/S
Operation Temperature Charging temperature 0~50°C
Discharging temperature -10~50°C
Relative Humidity 5%~95% (No Condensation)
Storage Temperature -20°C~ 45°C (1 month)
Installation Mode Rack (19”) installation
Machine Dimension (W*H*D (mm) 440*133*470
Package Dimension (W*H*D) (mm) /
N.W (kg) ≈46.5
G.W (kg) /
* Variations in dimensions and weights may occur due to production batches.
Altitude ≤4000m
Certification & Standards CE-EMC(EN 61000-6-3: 2007+A1: 2011+AC: 2012 EN IEC 61000-6-1: 2019); IEC62619:2017; IEC62619:2022; UN38.3/ MSDS
