HV2900 Pro Series (46.1-706.5KWH | 200Ah)

High Voltage LiFePO4 Energy Storage Battery (ESS) 230.4-883.2V | 6000 cycles @ 80% DOD, 25°C | 10 Years

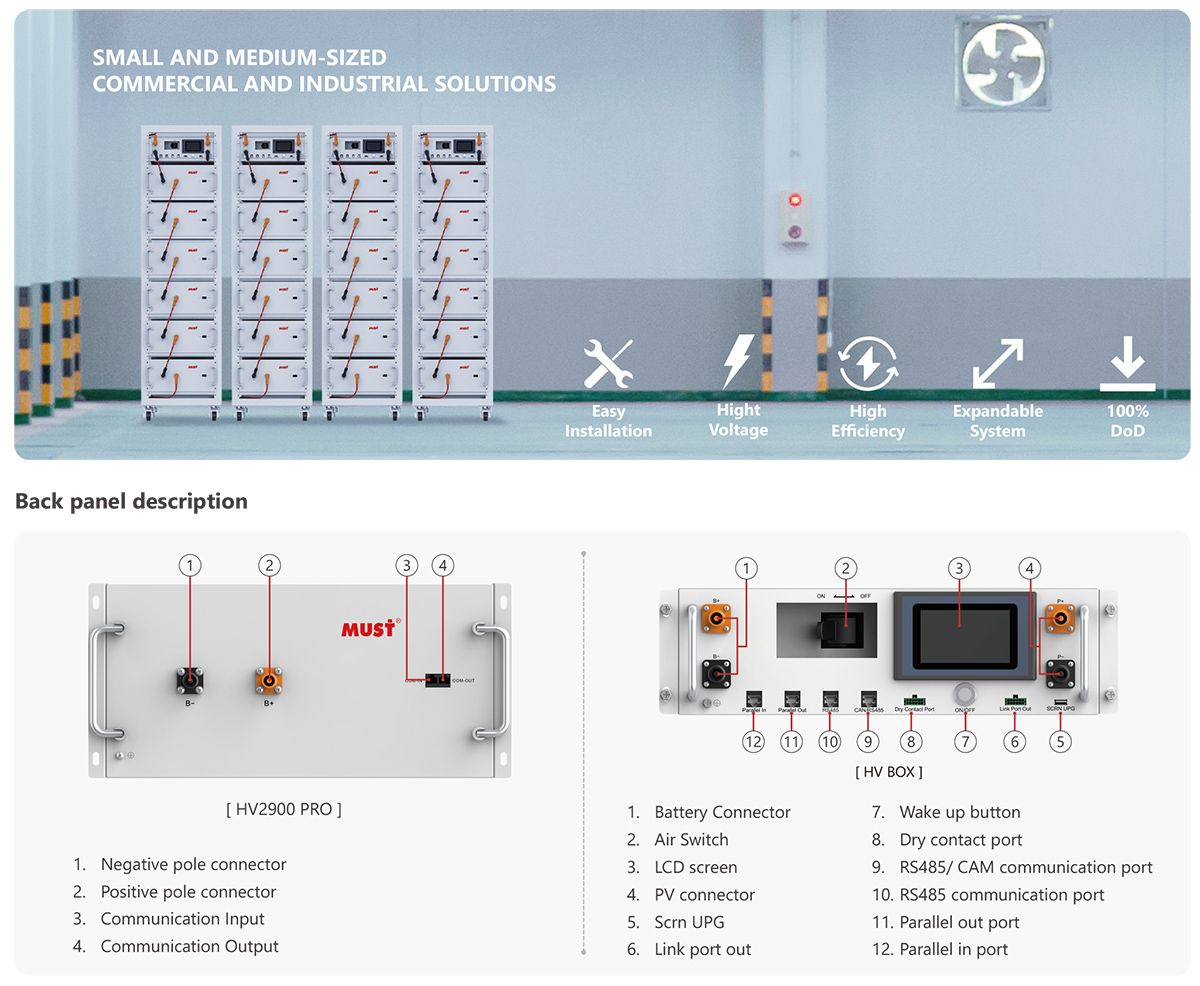

The HV2900 PRO is a high-performance, scalable battery storage module. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications.

Additional batteries can be installed in series, allowing for a maximum storage capacity of 706.5kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.

Category: High Voltage Battery Tag: High Voltage Lithium Battery

Description

■ 7.68kWh Capacity

■ Single cluster 176kWh, scalable to 706.5kWh

■ 6000 cycles @ 80% DOD, 25°C

■ 100% Depth of charger or Discharge

■ Wide Temperature Tolerance

■ CAN/RS485 Communication

■ High Voltage range

Technical Data		HV29P-46.1	HV29P-69.1	HV29P-92.1	HV29P-115.2	HV29P-138.2	HV29P-153.6	HV29P-176.6
Battery Type		LiFePO4
Battery Module		HV-BOX HP2900 PRO*6	HV-BOX HP2900 PRO*9	HV-BOX HP2900 PRO*12	HV-BOX HP2900 PRO*15	HV-BOX HP2900 PRO*18	HV-BOX HP2900 PRO*20	HV-BOX HP2900 PRO*23
Nominal Capacity		46080Wh	69120Wh	92160Wh	115200Wh	138240Wh	153600Wh	176640Wh
Max. output power		35KW	51KW	69KW	86KW	100KW	115KW	130KW
Nominal Voltage		230.4V	345.6V	460.8V	576.0V	691.2V	768.0V	883.2V
Operating Voltage		194.4~259.2V	291.6~388.8V	388.8~518.4V	486.0~648.0V	583.2~777.6V	648.0~864.0V	745.2~993.6V
Recommend Discharge Current		100A
Max.Charge/ Discharge Current		150A
Peak Discharge Current		200A@10s
Battery Module Capacity		200Ah
Built-in Circuit Breaker		220A
Charge Efficiency		99%
Battery Roundtrip Efficiency		95%
Cycle Life		6000 cycles @ EOL 70%, 25 °C, 0.5C 0.5C charging/discharging
Communication		CAN2.0, RS485
Status Indicator		HV BOX : LCD
GENERAL
IP Rating of Enclosure		IP20
Warranty		10 Years
Installation Location		Indoor Rack Mounting
Operating Temperature		Charge: 0~45°C; Discharge: -10~55°C
Storage Temperature		-5°C~35°C
Recommend Depth of Discharge		90%
Humidity		5 ~ 95% (No Condensing)
Altitude		Max. 3,000m
MECHANICAL
Machine Dimension (WHD (mm)	HV BOX	442133480
	HP2900 PRO	442222520
System Cabinet Dimension (WHD)(mm)	HV2900 PRO	5501920700	11501480700	11501920700	17001660700	17001920700	22501660700	22501660700
N.W (kg)	HV BOX	15
	HV2900 PRO	463	694	906	1119	1337	1495	1707
G.W (kg)	HV BOX	/
	HV2900 PRO	/	/	/	/	/	/	/
CERTIFICATION & STANDARDS
Safety		IEC62619
EMC		EN IEC 61000-6-1/2/3/4
Transportation		UN38.3
