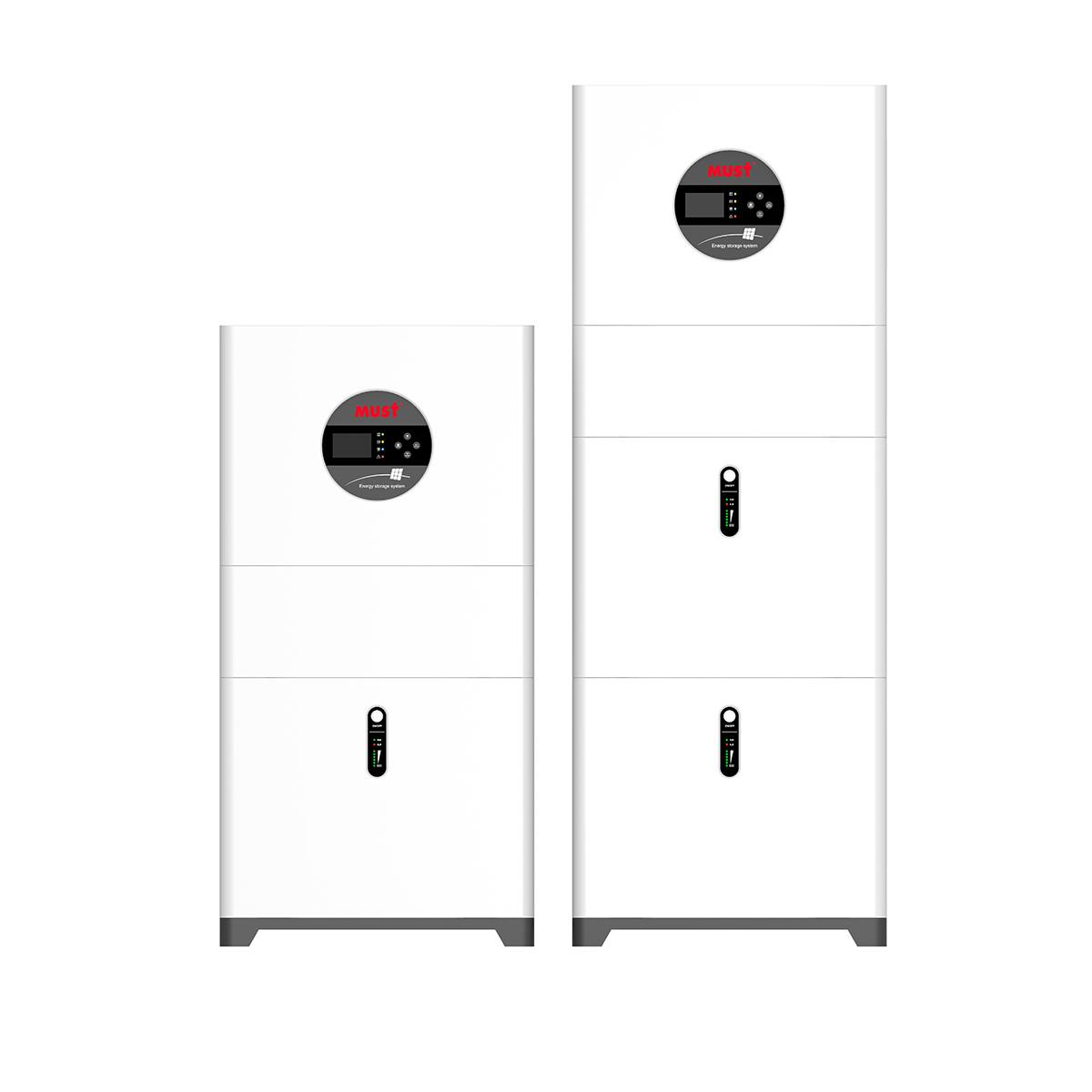

HBP1100 Series Home Solar Energy Storage System (5/6KW)
The HBP1100 energy storage system is an all-in-one solution that integrates a hybrid solar inverter and a lithium battery into one unit. This model combines functions for both off-grid and on-grid energy management, making it easy to store solar energy in your home battery.
Features:
- Rated power: 5kW / 6kW
- Lithium battery modular capacity: 5120Wh / 10240Wh
- Self-consumption and feedback to the grid
- Multiple working modes: energy storage mode, load priority mode, power selling mode, and a high-efficiency mode (six time periods are provided to set different modes to achieve peak-shaving and valley-filling, maximizing economic benefits)
- Built-in BMS, supports charging and discharging according to BMS requirements
- Supports connection with a generator
- Automatic switch-over from the line to the battery
The flexible modular system can be designed based on your daily household consumption. The HBP1100 ESS makes it easy to select the priority of power supply, allowing you to either store the energy for self-consumption or sell it back to the grid.
The HBP1100 ESS is the best emergency energy solution for villas, apartments, hotels, and shopping centers.
↓↓↓Installation Portfolio------------
| Model | HBP11-5048 | HBP11-6048 | ||||
|---|---|---|---|---|---|---|
| Nominal Battery System Voltage | 48VDC | |||||
| INVERTER OUTPUT | ||||||
| Rated Power | 5000W | 6000W | ||||
| Waveform | Pure Sine Wave | |||||
| Nominal Output Voltage RMS | 220~240Vac | |||||
| Output Voltage Regulation | +10/-18% | |||||
| Output Frequency | 50Hz/60Hz | |||||
| Inverter Efficiency (Peak) | 97% | |||||
| Typical Transfer Time | 10ms, 15ms max | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Voltage Range | 180~280Vac | |||||
| Frequency Range | 47.5~52.5Hz / 57.5~62.5Hz | |||||
| BATTERY | ||||||
| Note: Below Parameters base on one LiFePO4 Lithium Battery Modular | ||||||
| Battery | 51.2VDC 100AH 5120/10240Wh | |||||
| Low Battery Cutoff | 44VDC | |||||
| Low Battery Alarm | 46VDC | |||||
| Low Battery Voltage Recover | 48VDC | |||||
| High Voltage Alarm | 58.5VDC | |||||
| High Battery Voltage Recover | 57.5VDC | |||||
| SOLAR CHARGER & AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 500VDC | |||||
| PV Array MPPT Voltage Range | 120~500VDC | |||||
| Maximum Solar Charge Current | 100A | 125A | ||||
| Maximum AC Charge Current | 100A | 125A | ||||
| Maximum Charge Current | 100A | 125A | ||||
| Charger Voltage | 56.5VDC | 56.5VDC | ||||
| Charging Current | 100A | 100A | ||||
| Charging Time | 1-2 hours | 1-2 hours | ||||
| Overcharge Protection S.D. | 60VDC | 60VDC | ||||
| Output | ||||||
| AC Output | 230Vac (Terminal) | |||||
| BYPASS & PROTECTION | ||||||
| Nominal Input Frequency | 50Hz or 60Hz | |||||
| Circuit breaker | FUSE | |||||
| Output Short Circuit Protection | 80A | 90A | ||||
| Max Bypass Current | 23A | 27A | ||||
| MECHANICAL SPECIFICATIONS | ||||||
| Dimensions (W*D*H) (mm) | / | / | ||||
| Shipping Dimensions (W*D*H) (mm) | / | / | ||||
| Shipping Weight (kg) | / | / | ||||
| OTHER | ||||||
| Operating Temperature Range | -15℃ to 40℃ | |||||
| Ingress protection rating | IP65 | |||||
| Audible Noise | 60dB MAX | |||||
| Display | LED+LCD | |||||
| Standard Warranty | 2 year | |||||
